A slitting machine is a mechanical device that cuts wide sheets of paper or film into multiple narrow strips, commonly used in printing and packaging machinery. Previously, the magnetic powder clutches in slitting machines could not operate at high speeds because high-speed friction of the magnetic powder during operation easily caused high temperatures, shortening their lifespan and, in severe cases, jamming, hindering machine operation and leading to serious consequences for production. This significantly impacted production efficiency.
The traditional control scheme for slitting machines uses a large motor to drive the take-up and unwinding shafts. A magnetic powder clutch is added to the take-up and unwinding shafts. The resistance generated by the magnetic powder clutch is controlled by adjusting the current, thereby controlling the surface tension of the material. The magnetic powder clutch and brake are special automated actuators that transmit torque through magnetic powder filled in the working gap. Changing the magnetic current alters the magnetic state of the powder, thus regulating the transmitted torque. It can be used for stepless speed regulation from zero to synchronous speed, suitable for high-speed fine-tuning and low-to-medium power speed regulation systems. It is also used in unwinding or rewinding tension systems where torque is adjusted by regulating the current to ensure constant tension during winding.
The main feature of the slitting machine is that the magnetic powder clutch acts as a resistance device. Through system control, a DC voltage is output to control the resistance generated by the magnetic powder clutch. Its main advantage is that it is a passive device, allowing for control of relatively small tensions.

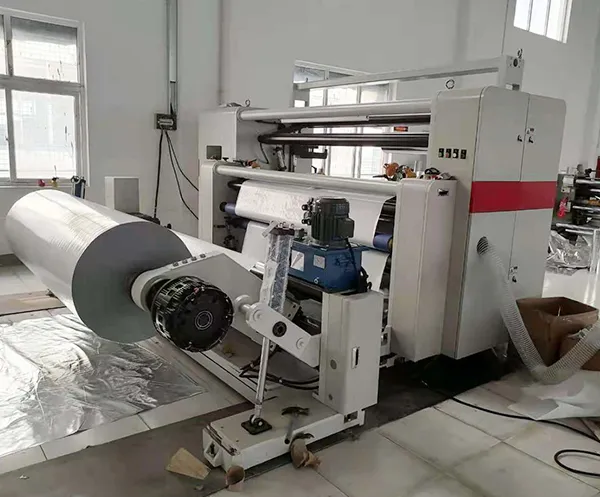

Fully automatic slitting machine, Meeting the Needs of Batch Processing for Paper and Film
The fully Automatic slitting machine is a core piece of equipment in the paper and film processing industry. Equipped with an intelligent control system and high-precision mechanical structure, it enables accurate slitting, rewinding, and winding of large rolls, efficiently meeting the batch processing requirements of paper and film. It is suitable for large-scale production in industries such as industrial packaging, printing, and electronics.
The machine is driven by servo motors and features automatic edge guiding, tension control, and length measurement systems. Slitting accuracy can reach ±0.1mm, allowing wide mother rolls to be precisely cut into narrower finished rolls. For paper processing, it can handle kraft paper, coated paper, corrugated board, and more, preventing wrinkles or rough edges and ensuring smooth, flat finished products. For film processing, it is compatible with PE, PP, aluminized films, and Aluminum-plastic composite films. Adjustable tension parameters prevent film stretching or deformation, ensuring suitability for subsequent bag-making, printing, and other production processes.
Additionally, the fully automatic slitting machine offers high-speed continuous operation, with processing speeds of 200–300 meters per minute. With automatic feeding and unloading systems, it significantly reduces manual intervention and improves batch processing efficiency. The machine supports customizable slitting widths and roll diameters, allowing flexible switching between multiple specifications to accommodate both small-batch, multi-lot production and large-scale standardized orders. Its stable performance and precise processing provide reliable support for paper and film processing enterprises, helping reduce costs and improve operational efficiency.
Frequently Asked Questions (FAQs):
1. What types of materials is the Fully automatic slitting machine suitable for?
This machine can process various types of paper (such as kraft paper, coated paper, corrugated paper) and film materials (such as PE, PP, metallized film, Aluminum-plastic composite film). Tension and slitting parameters can be adjusted according to material characteristics to ensure a smooth, wrinkle-free slitting process, meeting the requirements of subsequent printing, bag making, or packaging processes.
2. What level of slitting accuracy and roll specifications can be achieved?
The machine's slitting accuracy can reach ±0.1mm. The finished roll width, diameter, and number of layers can be flexibly adjusted to adapt to different batches, small-batch multi-specification production needs, or large-batch standardized production needs, ensuring consistent finished product dimensions and improving production efficiency.
3. What are the automation functions of the equipment?
The machine is equipped with automatic deviation correction, tension control, meter counting and positioning, feeding, and unloading devices, enabling high-speed continuous operation (200-300 meters/minute), significantly reducing manual intervention, improving batch production efficiency, and reducing human error and material waste.
4. Is the equipment difficult to maintain and operate?
The fully Automatic slitting machine adopts a modular design with a user-friendly interface and is equipped with a PLC touch control system, allowing for quick setting of slitting parameters. Routine maintenance is simple, including blade replacement, tension correction, and lubrication. Production personnel can operate it independently after short-term training.
5. How can slitting machines be customized to meet different customer needs?
We provide customized solutions, including slitting width, roll diameter, production speed, and additional functions (such as anti-static properties and rewinding tension control), to meet the specific needs of different industries, such as printing and packaging, industrial film, or electronic material processing, ensuring a high degree of matching between the equipment and the customer's production process.
